赛车模拟器人体工学 设定
<!DOCTYPE html>
<html lang="zh-CN">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>6轴模拟赛车座舱设定指南</title>
<!-- 引入 Tailwind CSS CDN -->
<script src="https://cdn.tailwindcss.com"></script>
<!-- 引入 React/ReactDOM CDN -->
<script src="https://unpkg.com/react@18/umd/react.development.js"></script>
<script src="https://unpkg.com/react-dom@18/umd/react-dom.development.js"></script>
<!-- 引入 Babel CDN，用于在浏览器中实时编译 JSX -->
<script src="https://unpkg.com/@babel/standalone/babel.min.js"></script>
<!-- 引入 Lucide Icons (React Icons Library) -->
<script type="module">
// 在浏览器环境，我们需要确保 Lucide icons 也能被加载，这里使用一个辅助函数模拟导入
// 由于 Babel 无法直接处理模块导入，我们简化使用纯 SVG 绘制，或依赖全局可用的组件
</script>
<style>
/* 定义 Tailwind 动画 */
@keyframes spin-slow {
from { transform: rotate(0deg); }
to { transform: rotate(360deg); }
}
.animate-spin-slow {
animation: spin-slow 10s linear infinite;
}
/* 确保 body 占满整个视口 */
html, body, #root {
height: 100%;
margin: 0;
padding: 0;
overflow: hidden;
}
</style>
</head>
<body>
<div id="root"></div>
<script type="text/babel">
// 简化 Lucide Icons 的实现，使用简单的 SVG 代替，以便在 Babel/CDN 环境下运行
const Icon = ({ children, size = 24, style, className }) => (
<svg
width={size}
height={size}
viewBox="0 0 24 24"
fill="none"
stroke="currentColor"
strokeWidth="2"
strokeLinecap="round"
strokeLinejoin="round"
style={style}
className={className}
>
{children}
</svg>
);
const Settings = (props) => (
<Icon {...props}>
<path d="M12.22 2h-.44a2 2 0 0 0-2 2v.18a2 2 0 0 1-1 1.73l-.43.25a2 2 0 0 0-.6 3.4L6 10a2 2 0 0 1-1 1.73v.54a2 2 0 0 1-1 1.73l-.43.25a2 2 0 0 0-.6 3.4L4 18a2 2 0 0 1 1 1.73v.18a2 2 0 0 0 2 2h.44a2 2 0 0 0 2-2v-.18a2 2 0 0 1 1-1.73l.43-.25a2 2 0 0 0 .6-3.4L18 14a2 2 0 0 1 1-1.73v-.54a2 2 0 0 1 1-1.73l.43-.25a2 2 0 0 0 .6-3.4L20 4a2 2 0 0 0-2-2h-.44a2 2 0 0 0-2 2v.18a2 2 0 0 1-1 1.73l-.43.25a2 2 0 0 0-.6 3.4L18 10a2 2 0 0 1-1 1.73v.54a2 2 0 0 1-1 1.73l-.43.25a2 2 0 0 0-.6 3.4L16 18a2 2 0 0 1-1 1.73v.18a2 2 0 0 0 2 2h.44a2 2 0 0 0 2-2v-.18a2 2 0 0 1 1-1.73l.43-.25a2 2 0 0 0 .6-3.4L18 14a2 2 0 0 1 1-1.73v-.54a2 2 0 0 1-1-1.73l-.43-.25a2 2 0 0 0-.6-3.4L16 4a2 2 0 0 0-2-2h-.44a2 2 0 0 0-2 2v.18a2 2 0 0 1-1-1.73l-.43-.25a2 2 0 0 0-.6-3.4L12.22 2z" />
<circle cx="12" cy="12" r="3" />
</Icon>
);
const Armchair = (props) => (
<Icon {...props}>
<path d="M11 9H9a2 2 0 0 0-2 2v4a2 2 0 0 0 2 2h2"></path>
<path d="M13 17h2a2 2 0 0 0 2-2v-4a2 2 0 0 0-2-2h-2"></path>
<path d="M6 15v-3"></path>
<path d="M18 15v-3"></path>
<path d="M2 21v-4a2 2 0 0 1 2-2h16a2 2 0 0 1 2 2v4"></path>
</Icon>
);
const Disc = (props) => (
<Icon {...props}>
<circle cx="12" cy="12" r="10"></circle>
<circle cx="12" cy="12" r="3"></circle>
</Icon>
);
const ChevronsRight = (props) => (
<Icon {...props}>
<path d="M13 17l5-5-5-5"></path>
<path d="M6 17l5-5-5-5"></path>
</Icon>
);
const Info = (props) => (
<Icon {...props}>
<circle cx="12" cy="12" r="10"></circle>
<path d="M12 16v-4"></path>
<path d="M12 8h.01"></path>
</Icon>
);
const MousePointer2 = (props) => (
<Icon {...props}>
<path d="m4 4 7.07 16.97 2.5-4.57 6.44 2.89L20 4Z" />
</Icon>
);
const SimRigErgo = () => {
const [activePart, setActivePart] = React.useState(null);
const [showMannequin, setShowMannequin] = React.useState(true);
// 模拟器参数数据
const rigData = {
seat: {
title: "赛车桶椅 (Bucket Seat)",
color: "#3b82f6",
params: [
{ label: "靠背角度", value: "100° - 110°", desc: "相对于水平面。动感模拟器建议稍微后倾，以利用背部承受加速G力。" },
{ label: "底座倾角", value: "10° - 15°", desc: "座椅前端略微抬高，使大腿完全贴合椅面，避免急刹车时身体前滑。" },
{ label: "视线高度", value: "屏幕垂直中心", desc: "眼睛应处于显示器垂直高度的50%-60%处，平视前方路面。" }
]
},
wheel: {
title: "方向盘基座 (Wheel Base)",
color: "#ef4444",
params: [
{ label: "距离", value: "手腕搭在盘圈上", desc: "背部紧贴座椅时，伸直手臂，手腕关节应刚好能搭在方向盘顶端（12点位置）。" },
{ label: "高度", value: "指向肩部", desc: "方向盘转向轴的延长线应指向您的肩膀高度。避免过高（耸肩）或过低（大腿干涉）。" },
{ label: "盘面角度", value: "10° - 20°", desc: "方向盘面稍微向上倾斜，符合手臂自然下垂的角度。" },
{ label: "肘部角度", value: "90° - 120°", desc: "握住3点和9点位置时，手肘应自然弯曲。" }
]
},
pedals: {
title: "踏板 (Pedals)",
color: "#22c55e",
params: [
{ label: "距离", value: "膝盖微弯", desc: "将刹车/油门踩到底时，腿部不能完全伸直（锁死膝盖），应保留约150°-160°的角度。" },
{ label: "踏板面角度", value: "90° (相对小腿)", desc: "静态时，脚掌与踏板面接触角度应接近垂直，避免脚踝过度背屈。" },
{ label: "高度", value: "脚跟低于臀部", desc: "GT坐姿中，脚跟位置通常比臀部低10-20cm左右；F1坐姿则高于臀部。" }
]
}
};
const currentInfo = activePart ? rigData[activePart] : null;
return (
<div className="flex flex-col h-full bg-slate-900 text-slate-100 font-sans selection:bg-blue-500 selection:text-white">
{/* Header */}
<header className="bg-slate-800 border-b border-slate-700 px-6 py-4 flex items-center justify-between shadow-md z-10">
<div>
<h1 className="text-xl font-bold flex items-center gap-2 text-blue-400">
<Settings className="animate-spin-slow" />

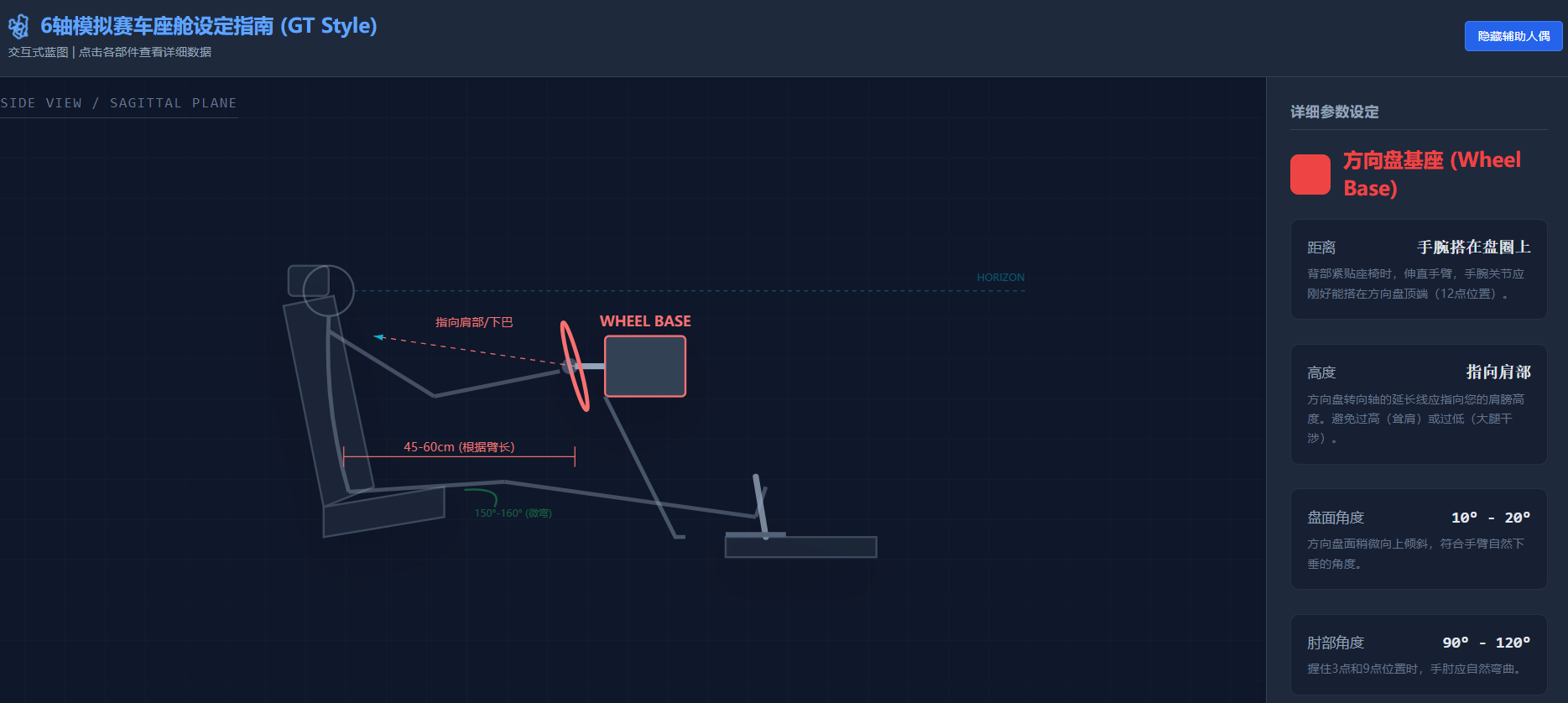

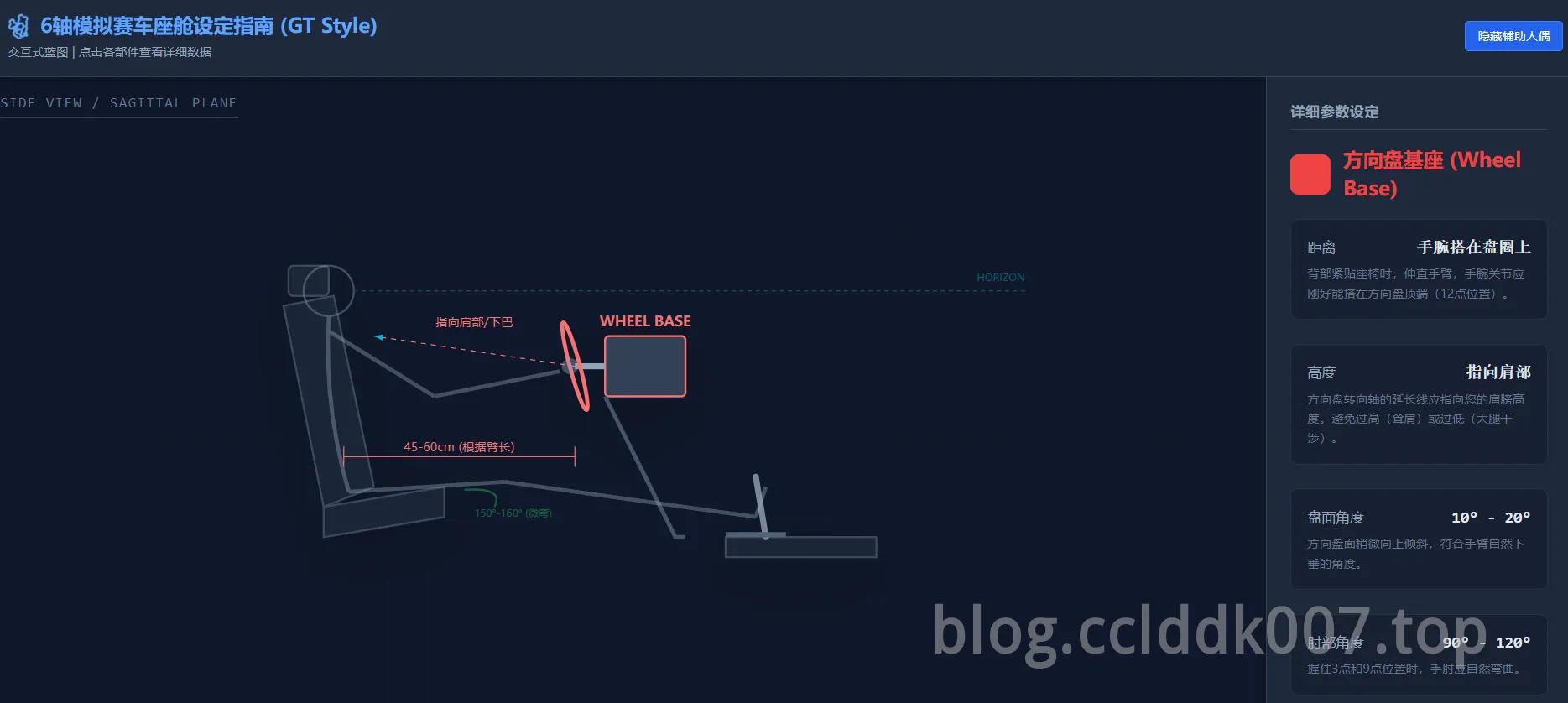

6轴模拟赛车座舱设定指南 (GT Style)
</h1>
<p className="text-xs text-slate-400 mt-1">交互式蓝图 | 点击各部件查看详细数据</p>
</div>
<div className="flex items-center gap-3">
<button
onClick={() => setShowMannequin(!showMannequin)}
className={`px-3 py-1.5 text-xs rounded border transition-colors flex items-center gap-2 ${showMannequin ? 'bg-blue-600 border-blue-500 text-white' : 'border-slate-600 text-slate-400 hover:bg-slate-700'}`}
>
{showMannequin ? '隐藏辅助人偶' : '显示辅助人偶'}
</button>
</div>
</header>
<div className="flex flex-1 overflow-hidden">
{/* Main Blueprint Canvas */}
<main className="flex-1 relative bg-[#0f172a] overflow-hidden flex flex-col items-center justify-center p-4">
{/* Grid Background */}
<div className="absolute inset-0 opacity-10 pointer-events-none"
style={{ backgroundImage: 'linear-gradient(#334155 1px, transparent 1px), linear-gradient(90deg, #334155 1px, transparent 1px)', backgroundSize: '40px 40px' }}>
</div>
<h2 className="absolute top-4 left-4 text-slate-500 text-sm font-mono tracking-widest uppercase border-b border-slate-700 pb-1">Side View / Sagittal Plane</h2>
<svg width="800" height="500" viewBox="0 0 800 500" className="max-w-full max-h-full drop-shadow-2xl">
<defs>
<marker id="arrow" markerWidth="10" markerHeight="10" refX="9" refY="3" orient="auto" markerUnits="strokeWidth">
<path d="M0,0 L0,6 L9,3 z" fill="#06b6d4" />
</marker>
<filter id="glow" x="-20%" y="-20%" width="140%" height="140%">
<feGaussianBlur stdDeviation="2" result="blur" />
<feComposite in="SourceGraphic" in2="blur" operator="over" />
</filter>
</defs>
{/* --- SEAT GROUP --- */}
<g
onClick={() => setActivePart('seat')}
className={`cursor-pointer transition-all duration-300 ${activePart === 'seat' ? 'opacity-100' : 'opacity-80 hover:opacity-100'}`}
>
{/* Seat Base */}
<path d="M 100 350 L 220 330 L 220 360 L 100 380 Z" fill="#1e293b" stroke={activePart === 'seat' ? "#60a5fa" : "#475569"} strokeWidth="2" />
{/* Seat Back */}
<path d="M 100 350 L 60 150 L 110 140 L 150 330 Z" fill="#1e293b" stroke={activePart === 'seat' ? "#60a5fa" : "#475569"} strokeWidth="2" />
{/* Headrest */}
<rect x="65" y="110" width="40" height="30" rx="5" fill="#1e293b" stroke={activePart === 'seat' ? "#60a5fa" : "#475569"} strokeWidth="2"/>
{/* Seat Angle Indicator */}
{activePart === 'seat' && (
<g>
<path d="M 100 350 L 100 250" stroke="#60a5fa" strokeDasharray="4,4" />
<path d="M 100 350 L 60 150" stroke="#60a5fa" strokeDasharray="4,4" />
<path d="M 90 290 Q 100 280 108 290" fill="none" stroke="#60a5fa" />
<text x="50" y="280" fill="#60a5fa" fontSize="12">110°</text>
<circle cx="100" cy="350" r="4" fill="#60a5fa" />
<text x="100" y="395" textAnchor="middle" fill="#60a5fa" fontSize="14" fontWeight="bold">BUCKET SEAT</text>
</g>
)}
</g>
{/* --- WHEEL GROUP --- */}
<g
onClick={() => setActivePart('wheel')}
className={`cursor-pointer transition-all duration-300 ${activePart === 'wheel' ? 'opacity-100' : 'opacity-80 hover:opacity-100'}`}
>
{/* Wheel Base Body */}
<rect x="380" y="180" width="80" height="60" rx="4" fill="#334155" stroke={activePart === 'wheel' ? "#f87171" : "#475569"} strokeWidth="2" />
{/* Steering Column/Shaft */}
<line x1="380" y1="210" x2="350" y2="210" stroke="#94a3b8" strokeWidth="6" />
{/* Steering Wheel Rim (Side view is an ellipse/line) */}
<ellipse cx="350" cy="210" rx="5" ry="45" fill="none" stroke={activePart === 'wheel' ? "#f87171" : "#94a3b8"} strokeWidth="4" transform="rotate(-15, 350, 210)" />
{/* Mounting Deck */}
<path d="M 380 240 L 450 380 L 460 380" fill="none" stroke="#475569" strokeWidth="4" />
{/* Wheel Indicators */}
{activePart === 'wheel' && (
<g>
<line x1="350" y1="210" x2="150" y2="180" stroke="#f87171" strokeDasharray="5,5" markerEnd="url(#arrow)" />
<text x="250" y="170" fill="#f87171" fontSize="12" textAnchor="middle">指向肩部/下巴</text>
{/* Distance Line */}
<line x1="120" y1="300" x2="350" y2="300" stroke="#f87171" strokeWidth="1" />
<line x1="120" y1="290" x2="120" y2="310" stroke="#f87171" strokeWidth="1" />
<line x1="350" y1="290" x2="350" y2="310" stroke="#f87171" strokeWidth="1" />
<text x="235" y="295" fill="#f87171" fontSize="12" textAnchor="middle">45-60cm (根据臂长)</text>
<text x="420" y="170" textAnchor="middle" fill="#f87171" fontSize="14" fontWeight="bold">WHEEL BASE</text>
</g>
)}
</g>
{/* --- PEDALS GROUP --- */}
<g
onClick={() => setActivePart('pedals')}
className={`cursor-pointer transition-all duration-300 ${activePart === 'pedals' ? 'opacity-100' : 'opacity-80 hover:opacity-100'}`}
>
{/* Pedal Base */}
<path d="M 500 380 L 650 380 L 650 400 L 500 400 Z" fill="#1e293b" stroke={activePart === 'pedals' ? "#4ade80" : "#475569"} strokeWidth="2" />
{/* Pedal Plate */}
<line x1="540" y1="380" x2="530" y2="320" stroke={activePart === 'pedals' ? "#4ade80" : "#94a3b8"} strokeWidth="6" strokeLinecap="round" />
{/* Heel Rest */}
<rect x="500" y="375" width="60" height="5" fill="#64748b" />
{/* Pedal Indicators */}
{activePart === 'pedals' && (
<g>
{/* Angle */}
<path d="M 540 380 L 530 320" stroke="#4ade80" strokeDasharray="2,2" />
<path d="M 540 380 L 600 380" stroke="#4ade80" strokeDasharray="2,2" />
<text x="560" y="360" fill="#4ade80" fontSize="12">~90° to floor</text>
{/* Height Delta */}
<line x1="100" y1="350" x2="500" y2="350" stroke="#475569" strokeDasharray="2,2" opacity="0.5"/>
<text x="500" y="420" textAnchor="middle" fill="#4ade80" fontSize="14" fontWeight="bold">PEDALS</text>
</g>
)}
</g>
{/* --- MANNEQUIN (Interactive Layer) --- */}
{showMannequin && (
<g className="pointer-events-none opacity-40">
{/* Head - Moved back slightly to align with headrest */}
<circle cx="105" cy="135" r="25" stroke="#94a3b8" fill="none" strokeWidth="2" />
{/* Eye Line */}
<line x1="130" y1="135" x2="800" y2="135" stroke="#06b6d4" strokeDasharray="4,4" />
<text x="750" y="125" fill="#06b6d4" fontSize="10">HORIZON / CENTER SCREEN</text>
{/* Spine - Moved back to sit IN the seat properly */}
<path d="M 105 160 Q 100 250 125 335" stroke="#94a3b8" strokeWidth="4" fill="none" />
{/* Thigh - Connected to new spine base */}
<line x1="125" y1="335" x2="280" y2="325" stroke="#94a3b8" strokeWidth="4" />
{/* Lower Leg */}
<line x1="280" y1="325" x2="530" y2="360" stroke="#94a3b8" strokeWidth="4" />
{/* Foot */}
<line x1="530" y1="360" x2="540" y2="330" stroke="#94a3b8" strokeWidth="4" />
{/* Upper Arm - Shoulder moved back, Elbow moved forward */}
<line x1="105" y1="175" x2="210" y2="240" stroke="#94a3b8" strokeWidth="4" />
{/* Lower Arm - Extended to wheel */}
<line x1="210" y1="240" x2="335" y2="215" stroke="#94a3b8" strokeWidth="4" />
{/* Hand - On the wheel rim */}
<circle cx="345" cy="210" r="8" fill="#94a3b8" />
{/* Knee Angle Indicator */}
<path d="M 240 333 Q 280 330 270 350" fill="none" stroke="#22c55e" strokeWidth="2" />
<text x="250" y="360" fill="#22c55e" fontSize="10">150°-160° (微弯)</text>
</g>
)}
</svg>
<div className="absolute bottom-4 left-4 flex gap-4 text-xs text-slate-500">
<div className="flex items-center gap-1"><div className="w-3 h-3 bg-blue-500 rounded-full"></div> 座椅</div>
<div className="flex items-center gap-1"><div className="w-3 h-3 bg-red-500 rounded-full"></div> 方向盘</div>
<div className="flex items-center gap-1"><div className="w-3 h-3 bg-green-500 rounded-full"></div> 踏板</div>
</div>
</main>
{/* Info Panel Sidebar */}
<aside className="w-80 bg-slate-800 border-l border-slate-700 shadow-xl z-20 overflow-y-auto">
<div className="p-6">
<h3 className="text-sm font-semibold text-slate-400 uppercase tracking-wider mb-4 border-b border-slate-700 pb-2">详细参数设定</h3>
{currentInfo ? (
<div className="animate-in slide-in-from-right duration-300">
<div className="flex items-center gap-3 mb-4">
<div className={`p-2 rounded-lg bg-opacity-20`} style={{ backgroundColor: currentInfo.color }}>
{activePart === 'seat' && <Armchair size={24} style={{ color: currentInfo.color }} />}
{activePart === 'wheel' && <Disc size={24} style={{ color: currentInfo.color }} />}
{activePart === 'pedals' && <ChevronsRight size={24} style={{ color: currentInfo.color }} />}
</div>
<h2 className="text-xl font-bold" style={{ color: currentInfo.color }}>{currentInfo.title}</h2>
</div>
<div className="space-y-6">
{currentInfo.params.map((param, index) => (
<div key={index} className="bg-slate-900/50 p-4 rounded-lg border border-slate-700/50 hover:border-slate-600 transition-colors">
<div className="flex justify-between items-center mb-1">
<span className="text-slate-400 text-sm">{param.label}</span>
<span className="font-mono font-bold text-slate-200">{param.value}</span>
</div>
<p className="text-xs text-slate-500 leading-relaxed">{param.desc}</p>
</div>
))}
</div>
<div className="mt-8 p-4 bg-blue-900/20 border border-blue-500/30 rounded text-xs text-blue-300">
<strong className="block mb-1 flex items-center gap-2"><Info size={14}/> 6轴动态特别提示：</strong>
<p>确保您的身体重心（CoG）尽可能接近动感平台的物理中心。安全带必须系紧（推荐四点式或五点式），因为在动态模拟中，身体与座椅的相对位移会严重影响体感反馈的准确性。</p>
</div>
</div>
) : (
<div className="h-full flex flex-col items-center justify-center text-slate-500 space-y-4 py-20">
<MousePointer2 size={48} className="animate-bounce opacity-50" />
<p className="text-center px-8">请点击左侧蓝图中的 <span className="text-blue-400">座椅</span>、<span className="text-red-400">方向盘</span> 或 <span className="text-green-400">踏板</span> 查看具体安装数据。</p>
</div>
)}
</div>
</aside>
</div>
</div>
);
};
const container = document.getElementById('root');
const root = ReactDOM.createRoot(container);
root.render(<SimRigErgo />);
</script>
</body>
</html>
本文是原创文章，采用 CC BY-NC-ND 4.0 协议，完整转载请注明来自 Dr.Chen
评论
匿名评论
隐私政策
你无需删除空行，直接评论以获取最佳展示效果
